A 4 giri di rulli cilindrici

A 4 giri di rulli cilindrici

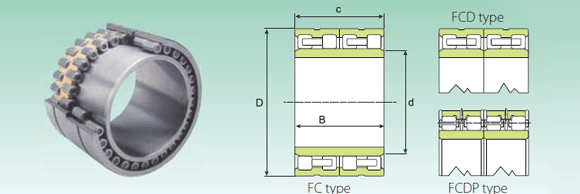

Nei cuscinetti a quattro corone di rulli cilindrici i rulli sono guidati sull’anello esterno fra orletti integrali o non integrali. L’anello interno è privo di orletti; il cuscinetto può quindi far fronte, entro determinati limiti, a spostamenti assiali dell’albero rispetto all’alloggiamento. Vengono forniti nelle esecuzioni FC, FCP, FCDP. Vengono utilizzati quasi esclusivamente nei laminatoi.

Essi hanno un attrito minore rispetto ad altri cuscinetti a rulli.


Prodotti:

Sigla
FC 182870
FC 202870
FC 2028104
FC 2030106
FC 2234120
FC 2436105
FC 2640125
FC 2842125
FC 2942155
FC 3045120
FCD 3045120
FC 3046156
FC 3246130
FC 3248124
FC 3248168
FCD 3446160
FC 3450170
FC 3452120
FC 3452150
FC 3652124
FC 3652168
FC 3652180
FC 3854168
FC 3854170
FC 3854200
FC 4054170
FC 4056188
FC 4058192
FC 4260170
FC 4260210
FC 4462192
FC 4462225
FCD 4464210
FC 4666206
FC 4668260
FC 4866220
FC 4872220
FC 5070220
FC 5274200
FC 5274220
FC 5274220A
FCD 5280290
FC 5476230
FC 5678220
FC 5678240
FC 5684280
FC 6084240
FCD 6084300
FC 6490240
FCD 6492340
FCD 6692340
FC 6890250
FCD 6896350
FCDP 70100410
FC 70104300
FC 72100250
FCD 72102370
FC 73108300
FCDP 74104380
FCD 76108260
FCD 76108300
FC 76108304
FC 76108340
FCD 76108400
FCD 76112300
FCD 76112325
FCD 78108320
FC 80110300
FC 80112300
FCD 80112410
FCD 80114440
FCDP 82112400
FCDP 82120440
FCD 84116260
FCD 84116320
FCD 84120440
FCDP 88124450
FC 88130355
FC 88132340
FC 90114300
FCD 92130355
FCD 92130424
FCD 92130470
FC 92136400
FCD 96130450
FCD 96136420
FCDP 96136500
FCD 100130260
FCD 100132450
FCD 100136450
FCDP 100142480
FC 100144400
FCD 100148500
FCDP 102136500
FCD 102146520
FCDP 102152550
FCDP 106152520
FCD 106156500
FCD 106156570
FCDP 110148510
FCDP 110160520
FCDP 112160600
FCDP 112164630
FCDP 112164600
FCDP 112164630
FC 114150530
FCDP 114160514
FCDP 114163594
FCDP 116156486
FCDP 116156486
FCDP 116156486
FCDP 118164590
FCDP 120164575
FCDP 120174540
FCDP 120174640
FCD 126160360
FCD 126170436
FCD 126184515
FCDP 128176600
FCDP 130180650
FCDP 130184670
FCDP 130184690
FCD 132164440
FCD 132176450
FCDP 136204680
FCDP 138196715
FCDP 138196750
FCDP 140186620
FCDP 140196700
FCDP 140200710
FCDP 142204710
FCDP 145200700
FCDP 146192620
FCDP 146206750
FCDP 150200670
FCDP 150216650
FCDP 150218750
FCDP 150226670
FCDP 152203700
FCDP 152206750
FCDP 152216790
FCDP 152216790
FCDP 156214780
FCDP 160216700
FCDP 160216750
FCDP 164226800
FCDP 164232840
FCDP 168232840
FCDP 170230840
FCDP 170236650
FCDP 170236850
FCDP 170236850
FCDP 172228750
FCDP 172232710
FCDP 176228800
FCDP 180244840
FCDP 180256780
FCDP 180256930
FCDP 180256840
FCDP 184256800
FCDP 184256850
FCDP 184268950
FCDP 190260850
FCDP 190272975
FCDP 1902721000
FCDP 196262880
FCDP 200272800
FCDP 206276850
FCDP 2082881000
FCDP 2403181050
FCDP 260331880
FCDP 2703531360
FCDP 2703561200
FCDP 2703801360
d (mm) D (mm) B (mm) c (mm) C din (KN) C0 stat (KN) Peso (Kg) Sigla anello
90 140 70 70 253 425 3.78
100 140 70 70 209 435 003
100 140 104 104 330 775 4.99
100 150 106 106 425 890 6.67
110 170 120 120 534 1110 10.1
120 180 105 105 413 770 9.13
130 200 125 125 583 1200 14.6
140 210 125 125 594 1160 14.7
145 210 155 155 751 1610 18.3
150 225 120 120 710 1450 16.7
150 225 120 120 710 1450 16.6
150 230 156 156 852 1790 23.6
160 230 130 130 742 1705 16.9
160 240 124 124 810 1530 20.3
160 240 168 168 1060 2350 26.4
170 230 160 160 1210 2360 20
170 250 170 170 1280 2500 28.5
170 260 120 120 867 1790 24.6
170 260 150 150 1000 2240 29.7
180 260 124 124 809 1730 21.7
180 260 168 168 1180 2790 30.2
180 260 180 180 1250 3000 31.1
190 270 168 168 1420 2430 30.2
190 270 170 170 1430 2430 30.2
190 270 200 200 1520 3180 35
200 270 170 170 1120 2270 28.7
200 280 188 188 1430 2580 35.7
200 290 192 192 1460 3250 40.9
210 300 170 170 1320 3150 39.1
210 300 210 210 1560 3950 48.3
220 310 192 192 1600 1910 45.8
220 310 225 225 1850 4050 53.9
220 320 210 210 1900 4000 57.1
230 330 206 206 1880 4350 57.8
230 340 260 260 2120 5350 82.1
240 330 220 220 1780 4850 56.7
240 360 200 200 1870 4410 78
250 350 220 220 1740 4980 65.5
260 370 200 200 2050 4250 73
260 370 220 220 2100 4900 80
260 370 220 220 2100 4800 78.7
260 400 145 145 1800 1720 136
270 380 230 230 1890 4800 80.2
280 390 220 220 2130 5150 86.5
280 390 240 240 2570 5850 90.4
280 420 280 280 3500 7000 139
300 420 240 240 3450 6300 111
300 420 300 300 3550 6800 129
320 450 240 240 2760 6720 119
320 460 340 340 3700 10000 189
330 460 340 340 3550 9950 210
340 450 250 250 2430 6800 111
340 480 350 350 3750 10600 202
350 500 410 410 5800 13500 280
350 520 300 300 4200 9000 213
360 500 250 250 3600 7730 156
360 510 370 370 4950 11400 220
365 540 300 300 5000 11000 490
370 520 380 380 5230 12000 296
380 540 260 260 3350 8550 198
380 540 300 300 4650 10100 220
380 540 304 304 4650 10100 227
380 540 340 340 5240 11900 256
380 540 400 400 5050 14200 297
380 560 300 300 4950 9650 261
380 560 325 325 4840 10000 263
390 540 320 320 5200 12000 228
400 550 300 300 4460 5050 223
400 560 300 300 4550 10000 242
400 560 410 410 6250 15600 310
400 590 440 440 7250 1650 530
410 560 400 400 6400 15800 287
410 600 440 440 6450 18300 445
420 580 260 260 4350 9600 205
420 580 320 320 4680 10800 249
420 600 440 440 5550 16300 414
440 620 450 450 7420 15800 452
440 650 355 355 6250 14600 400
440 660 340 340 6380 13500 425
450 590 300 300 3900 12200 240
460 650 355 355 6250 14500 375
460 650 424 424 7800 18200 452
460 650 470 470 8750 22400 512
460 680 400 400 8050 17400 630
480 650 450 450 7840 15400 419
480 680 420 420 8400 19400 510
480 680 500 500 7980 23400 599
500 650 260 260 4000 10000 220
500 670 450 450 8000 21500 455
500 680 450 450 8200 22000 485
500 710 480 480 8780 21500 604
500 720 400 400 7850 17500 526
500 738 500 500 10500 23000 732
510 680 500 500 8950 26200 525
510 730 520 520 9480 21500 744
510 760 550 550 12000 26500 947
530 760 520 520 11500 28500 773
530 780 500 500 9300 20500 810
530 780 570 570 12700 32500 954
550 740 510 510 10000 27500 612
550 800 520 520 10300 28500 890
560 800 600 600 13000 33500 1010
560 820 315 279 13500 36000 1164
560 820 600 600 14200 34000 1075
560 820 630 630 14400 36000 1170
570 750 530 530 9000 26600 625
570 800 514 514 11000 29000 835
570 815 594 594 13000 35200 1010
580 780 520 486 9900 27000 696
580 780 521 486 9900 27000 700
580 780 558 486 9900 27000 713
590 820 590 590 12800 35100 990
600 820 575 575 12300 35000 945
600 870 540 540 13000 31500 1100
600 870 640 640 13200 38500 1347
630 800 360 360 6850 19500 560
630 850 436 436 7450 23500 720
630 920 515 515 13700 17160 1182
640 880 600 600 13500 40000 1120
650 900 650 650 14000 42000 1275
650 920 670 670 14300 44500 1460
650 920 690 690 14500 45000 1490
660 820 440 440 7450 22700 532
660 880 450 450 7500 23500 782
680 1020 680 680 20000 49500 2050
690 980 715 715 18800 51500 1805
690 980 750 750 18800 51500 1920
700 930 620 620 15000 42800 1170
700 980 700 700 17500 48500 1680
700 1000 710 710 19000 47500 1820
710 1020 710 710 19500 49700 1940
725 1000 700 700 18000 49500 1750
730 960 620 620 15400 45000 1218
730 1030 750 750 20500 58500 2035
750 1000 670 670 17000 48500 1522
750 1080 665 650 19500 48000 2020
750 1090 750 750 21500 51500 2410
750 1133 670 670 21000 50500 2450
760 1015 700 700 18500 55000 1600
760 1030 750 750 21000 61200 1870
760 1080 790 790 23500 65000 2420
760 1080 805 790 23500 65000 2450
780 1070 780 780 22000 60000 2280
800 1080 700 700 18800 48500 1850
800 1080 750 750 20000 60000 2030
820 1130 800 800 19700 67000 2534
820 1160 840 840 21600 68500 2750
840 1160 840 840 24700 70800 2730
850 1150 840 840 25400 76500 2560
850 1180 650 650 19000 50500 2100
850 1180 850 850 26100 74000 2920
850 1180 875 850 26100 74000 2650
860 1140 750 750 20500 61000 2100
860 1160 735 710 21000 60000 2150
880 1140 80 800 24000 76000 2210
900 1220 840 840 26300 80000 3050
900 1280 780 780 28500 80500 3250
900 1280 930 930 32500 93500 4050
900 1280 1050 840 28900 80500 3890
920 1280 815 800 28700 80000 3280
920 1280 865 850 27600 77500 3450
920 1300 975 950 32500 92500 4180
950 1300 850 850 32200 85000 3390
950 1360 975 975 34000 100000 4895
950 1360 1000 1000 37500 105000 5013
980 1310 880 800 28500 86500 3300
1000 1360 800 800 27000 82800 3560
1030 1380 850 850 29000 90500 3650
1040 1440 1000 1000 37900 93500 5090
1200 1590 1050 1050 41800 13500 5980
1300 1655 890 880 37300 122000 4800
1350 1765 1360 1360 40000 122000 9110
1400 1780 1200 1200 52300 163000 7380
1400 1900 1360 1360 61500 182000 11300
